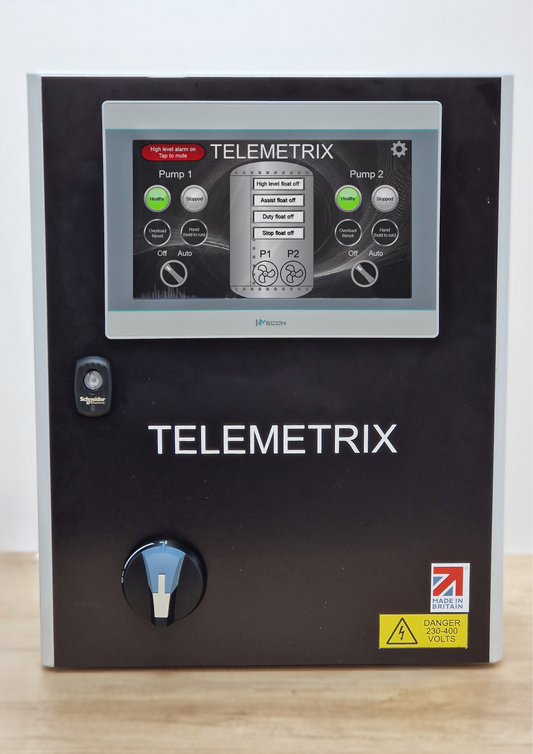

Telemetrix View

Telemetrix View - Remote monitoring alerts for pump panels

Features:
●  Suitable for either 4 - 20mA or float switches detection
●  Connectivity via Wi-Fi, broadband cable or SIM card
●  10.2 inch touchscreen HMI
●  Email alerts for pump trip, high level and connection loss
●  High level alarm with sounder c/w 24V DC power supplies for 2no. remote beacons
●  Volt-free output relays for pump running, pump fault and high-level alarm
●  PPC mild steel enclosure
●  Direct-on-line
●  Interlocked power isolator with shaft guide to ensure isolator shaft always aligns with door handle
●  Enhanced pump management, e.g. when pump 1 is turned to ‘off’ then pump 2 stays as the duty pump.

Input Voltage The same Telemetrix panel can take either 230V or 400V (with no neutral required)
Current Rating (per pump) 1 - 18 amps (specify when ordering)
Control Circuit 24V DC
Enclosure material Powder coated mild steel
Warranty 12 months
Dimensions 500mm high x 400mm wide x 200mm deep
Degree of protection IP65
